WEINLICH STEUERUNGEN

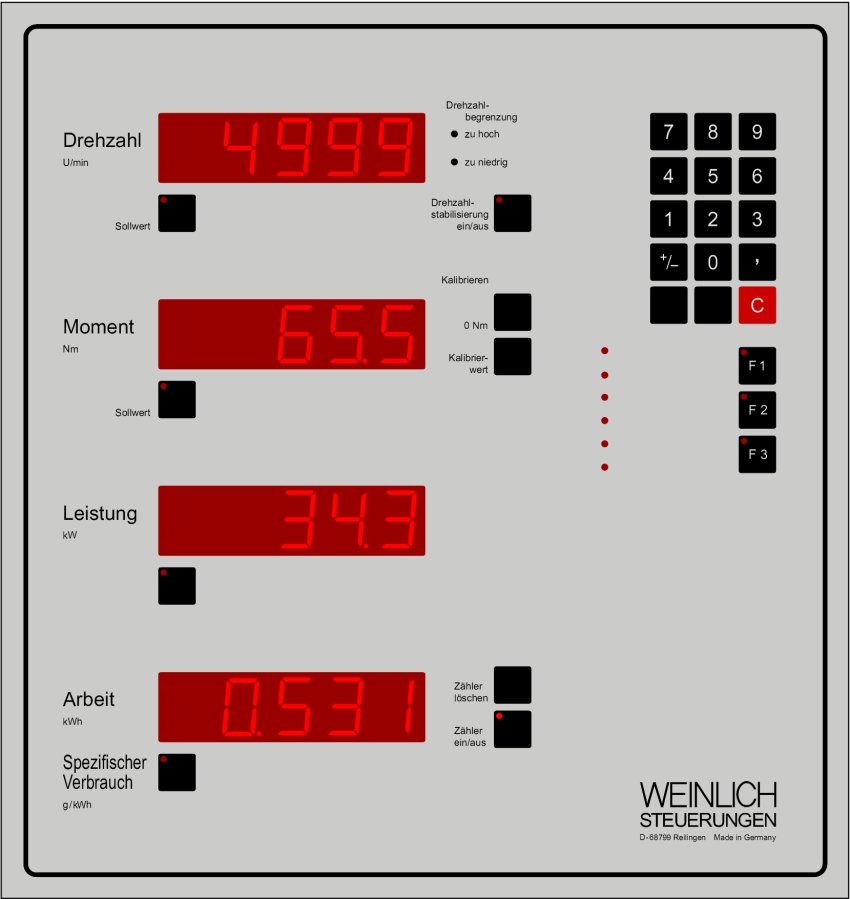

The Display and Operating Panel

MP-Computer, Anzeige- und Bedietafeln

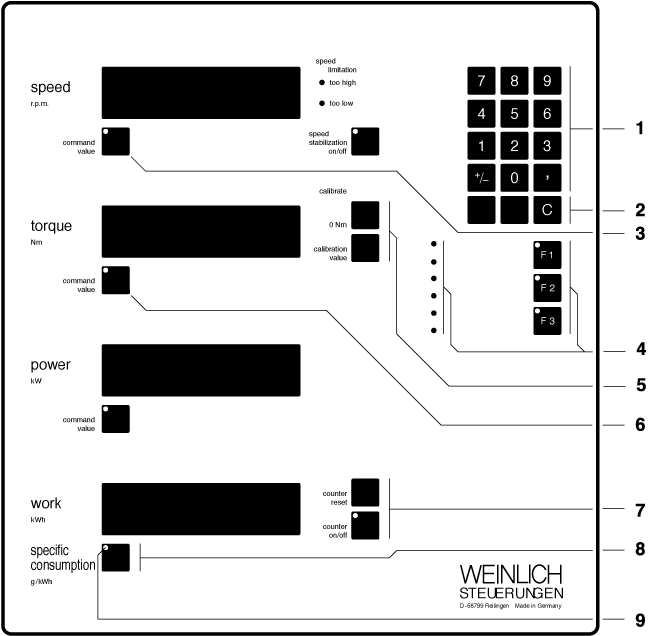

1

Command value adjustment

2

Clear command value

3

Change over between actual/command speed value display

4

Input keys and indicating lamps for special operating modes, e.g. printing of test reports

5

Input keys for calibrating the torque measurement

6

7

"Clear counter" and "counter on/off" for the work counter and, if applicable, further counters, also for the determination of the specific fuel consumption (for combustion engines)

8

Change over between "work" and "specific fuel consumption"

9

Flashing display "Data from the balance"
