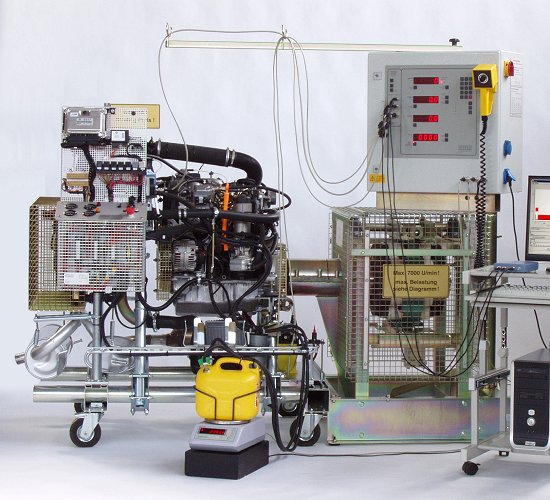

 MP(L) 100 S Engine Test Bed with MP Computer

Motorprüfstand MP 100 S



On the right:
Air-cooled braking dynamometer with the evaluation, display and control unit swivelling above. In order to meet certain working conditions, the evaluation, display and control unit can also be contained in a separate operator's desk.

On the left:
Engine support built up with the RWB construction kit.
This system is also adaptable to extraordinary testing arrangements (e.g. for examinations concerning the airborne sound isolation).

In front:
Fuel tank on a precision balance for automatic gravimetric determination of the specific fuel consumption.


Further explanations:
MP 100 S engine dynamometer
Fuel consumption metering and p-V-diagram
